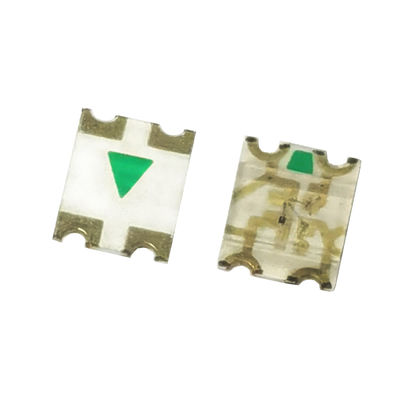

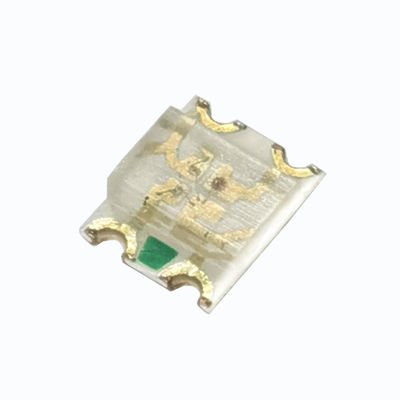

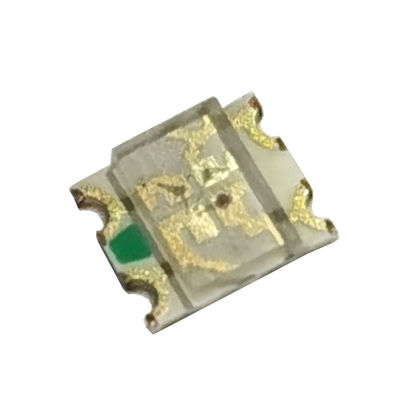

572nm SMD1210 1.10mm Height Bi Color LED GaP Led Multi Color Chip

Name: 572nm SMD1210 1.10mm Height Bi Color LED GaP Led Multi Color Chip
Brand: DOUBLE LIGHT
SKU: DL-PCB1210RGBC-A2
Price: 0.028 USD
Availability: InStock
Rating: 4.5 (190 reviews)

Large Image : 572nm SMD1210 1.10mm Height Bi Color LED GaP Led Multi Color Chip

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-PCB1210RGBC-A2

Payment & Shipping Terms:

Minimum Order Quantity:	10000PCS/Reel
Price:	US$ 0.028 per unit (Pieces)
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	RGB LEDs	Package:	SMD1210 LED
Emitted Color:	Hyper Red & Yellow Green,Blue	Peak Emission Wavelength:	640nm & 572nm & 470nm
Chip Material:	AlGaInP & GaP	Lens Type:	Water Clear
Forward Voltage @20ma:	Typ: 2.0-3.8v	Viewing Angle:	120 Deg
Highlight:	1.10mm Height Bi Color LED , 572nm SMD1210 Bi Color LED , GaP Led Multi Color Chip

DL-PCB1210RGBC-A2.pdf

0.80mm Height Bi color smd led 1210 Package Tri Colour Led Multi Color Chip GaP Material

Features:

Package in 8mm tape on 7″diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
RGB color type.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 1210 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

Automotive: Backlighting in dashboard and switch.
Telecommunication: Indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.

Package Dimension:

572nm SMD1210 1.10mm Height Bi Color LED GaP Led Multi Color Chip 0

Part No.	Chip Material		Lens Color	Source Color
DL-PCB1210RGBC-A2	R	AlGaInP	Water Clear	Hyper Red
	G	InGaN		Pure Green
	B	InGaN		Blue

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Emitting Color	Max.	Unit
Power Dissipation	PD	Hyper Red	60	mW
		Pure Green	95
		Blue	95
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	Hyper Red	100	mA
		Pure Green	100
		Blue	100
Continuous Forward Current	IF	Hyper Red	25	mA
		Pure Green	25
		Blue	25
Reverse Voltage	VR		5	V
Electrostatic Discharge (HBM)	ESD	Hyper Red	2000	V
		Pure Green	1000
		Blue	1000
Operating Temperature Range	Topr		-40℃ to +80℃
Storage Temperature Range	Tstg		-40℃ to +85℃
Soldering Temperature	Tsld		260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Emitting Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	Hyper Red	120	250	---	mcd	IF=20mA (Note 1)
		Pure Green	400	500	---
		Blue	100	250	---
Viewing Angle	2θ_1/2	Hyper Red	---	120	---	Deg	IF=20mA (Note 2)
		Pure Green	---	120	---
		Blue	---	120	---
Peak Emission Wavelength	λp	Hyper Red	---	632	---	nm	IF=20mA
		Pure Green	---	520	---
		Blue	---	468	---
Dominant Wavelength	λd	Hyper Red	---	624	---	nm	IF=20mA (Note 3)
		Pure Green	---	525	---
		Blue	---	470	---
Spectral Line Half-Width	△λ	Hyper Red	---	20	---	nm	IF=20mA
		Pure Green	---	35	---
		Blue	---	25	---
Forward Voltage	VF	Hyper Red	1.60	2.00	2.40	V	IF=20mA
		Pure Green	2.80	3.40	3.80
		Blue	2.80	3.40	3.80
Reverse Current	IR	Hyper Red	---	---	10	µA	V_R=5V
		Pure Green			50
		Blue			50

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Super Red:

Yellow Green:

Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 2000/3000PCS per reel.
